class: center, middle, inverse, title-slide # Joining Data Sets

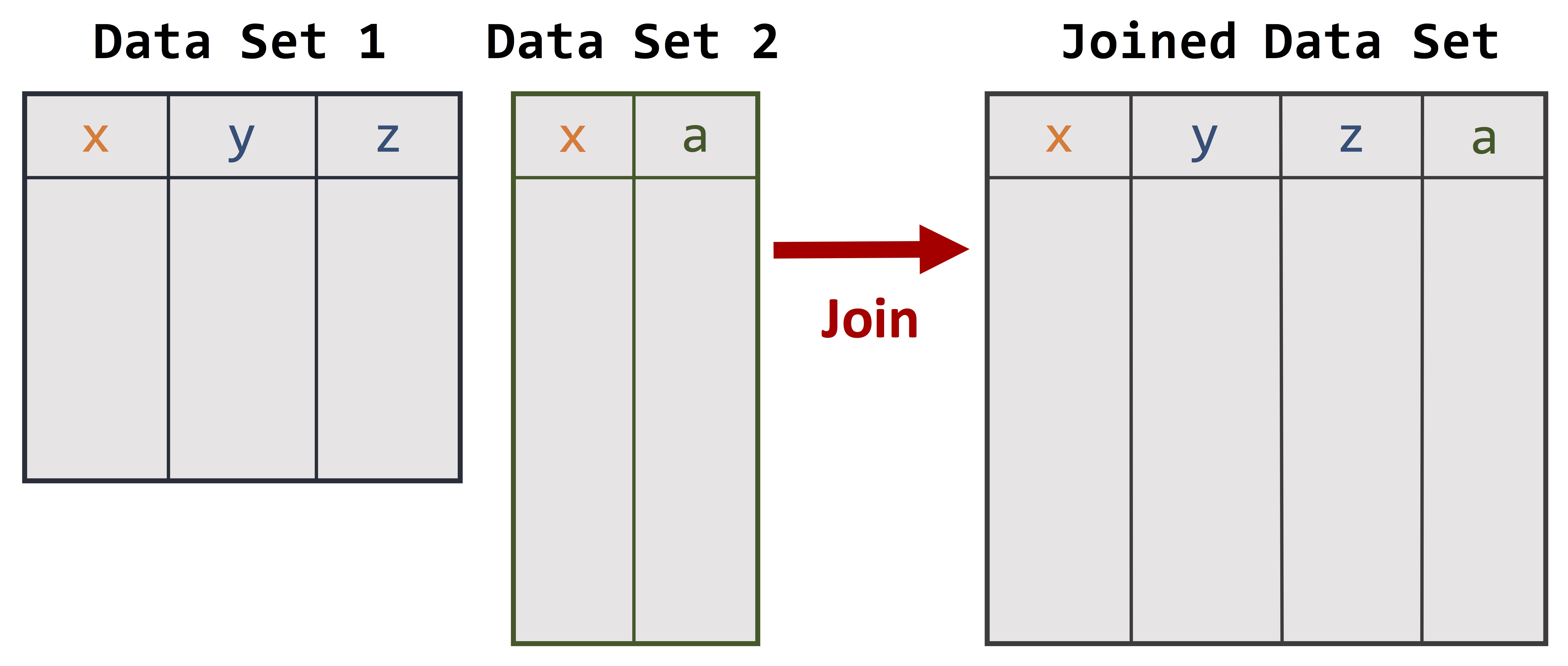

🖇 ## Fall 2017 ### Tyson S. Barrett --- # What can be done with data... .large[.huge[.center[ [Tesla Autopilot 2.0](https://www.youtube.com/watch?v=C3DbrYx-SN4) ]]] --- # Joining Data Sets  --- # Some Vocabulary .pull-left[ .large[.large[ - .dcoral[**Join (merge)**] = combining two data sets (or *tables*) based on some **primary key(s)** - .nicegreen[**Primary Key**] = a variable that uniquely identifies observations in a table ]]] .footnote[ [R For Data Science](http://r4ds.had.co.nz/relational-data.html) ] -- .pull-right[ .large[.large[ - .bluer[**Foreign Key**] = a variable that uniquely identifies an observation in another table - .dcoral[**Relation**] = the relationship between a primary key and a foreign key ]]] --- background-image: url(key_diagram.jpg) background-position: 50% 85% background-size: 800px # Example --- # Types of Joins .pull-left[.large[.large[ .dcoral[**Inner Join**] = joining only the observations that are in both tables .bluer[**Left Join**] = joining all observations in first table but drop those in the second that are not in the first ]]] -- .pull-right[.large[.large[ .nicegreen[**Right Join**] = joining all observations in second table but drop those in the first that are not in the second .dcoral[**Full (Outer) Join**] = joining all the observations whether they are in one or both tables ]]] --- background-image: url(animated-inner-join.gif) background-position: 50% 60% background-size: 700px # Inner Join .footnote[Thanks to [Garrick Aden-Buie](garrickadenbuie.com) for the gganimate code for these figures!] --- background-image: url(animated-left-join.gif) background-position: 50% 60% background-size: 700px # Left Join .footnote[Thanks to [Garrick Aden-Buie](garrickadenbuie.com) for the gganimate code for these figures!] ??? Anything stand out at you compared to the last diagram? --- background-image: url(animated-right-join.gif) background-position: 50% 60% background-size: 700px # Right Join .footnote[Thanks to [Garrick Aden-Buie](garrickadenbuie.com) for the gganimate code for these figures!] --- background-image: url(animated-full-join.gif) background-position: 50% 60% background-size: 600px # Full Join .footnote[Thanks to [Garrick Aden-Buie](garrickadenbuie.com) for the gganimate code for these figures!] --- # Quiz! .pull-left[   ] .pull-right[  ] --- # Quiz! .huge[ - Explain joining in a sentence or two. ] -- .huge[ - If you have more individuals in data set 1 than data set 2 and you want to keep all of the observations, what kind of join is best? ] -- .huge[ - Thought Experiment: What would happen if you tried to join on a foreign key? ] --- # Answers .huge[ - Joining is taking two data sets and joining them based on identifiers (keys) or something similar to that. ] -- .huge[ - Either left join or full join. ] -- .huge[ - This situation is called duplicate keys. See next slide for an example. ] --- background-image: url(duplicatekeys_diagram.png) background-position: 50% 80% background-size: 800px # Duplicate Keys .huge[For `x` this is a foreign key and for `y` it is a primary key. Why is that?] --- background-image: url(key_diagram.jpg) background-position: 50% 85% background-size: 800px # Let's Join! --- # Health
--- # Demographics
--- # Show Info

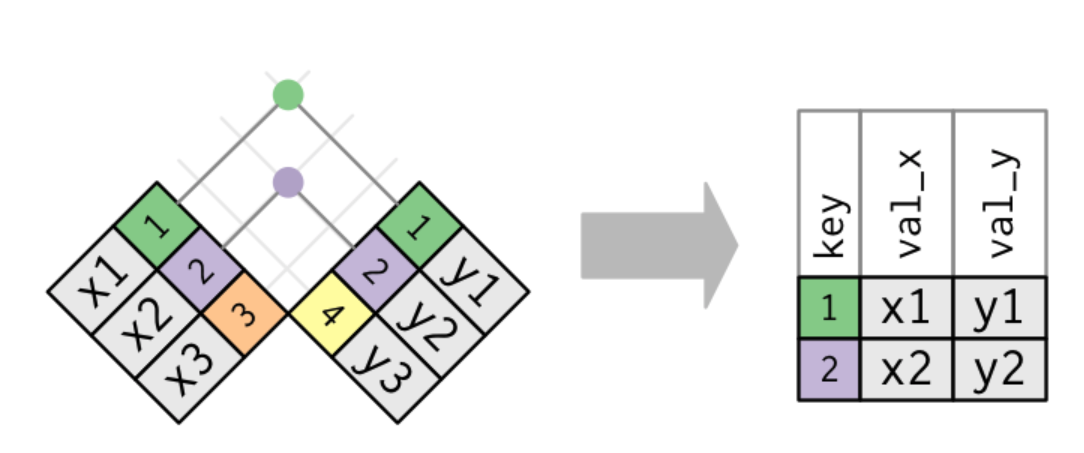

--- # Joining in `R` .huge[ We will use the .dcoral[`tidyverse`] package: ] .large[.large[ 1. .nicegreen[`inner_join`].dcoral[`(`]`data1, data2`.dcoral[`)`] 2. .nicegreen[`left_join`].dcoral[`(`]`data1, data2`.dcoral[`)`] 3. .nicegreen[`right_join`].dcoral[`(`]`data1, data2`.dcoral[`)`] 4. .nicegreen[`full_join`].dcoral[`(`]`data1, data2`.dcoral[`)`] ]] --- background-image: url(key_diagram.jpg) background-position: 95% 90% background-size: 250px # Inner Join ```r inner_join(show, demo, by = "show") ```

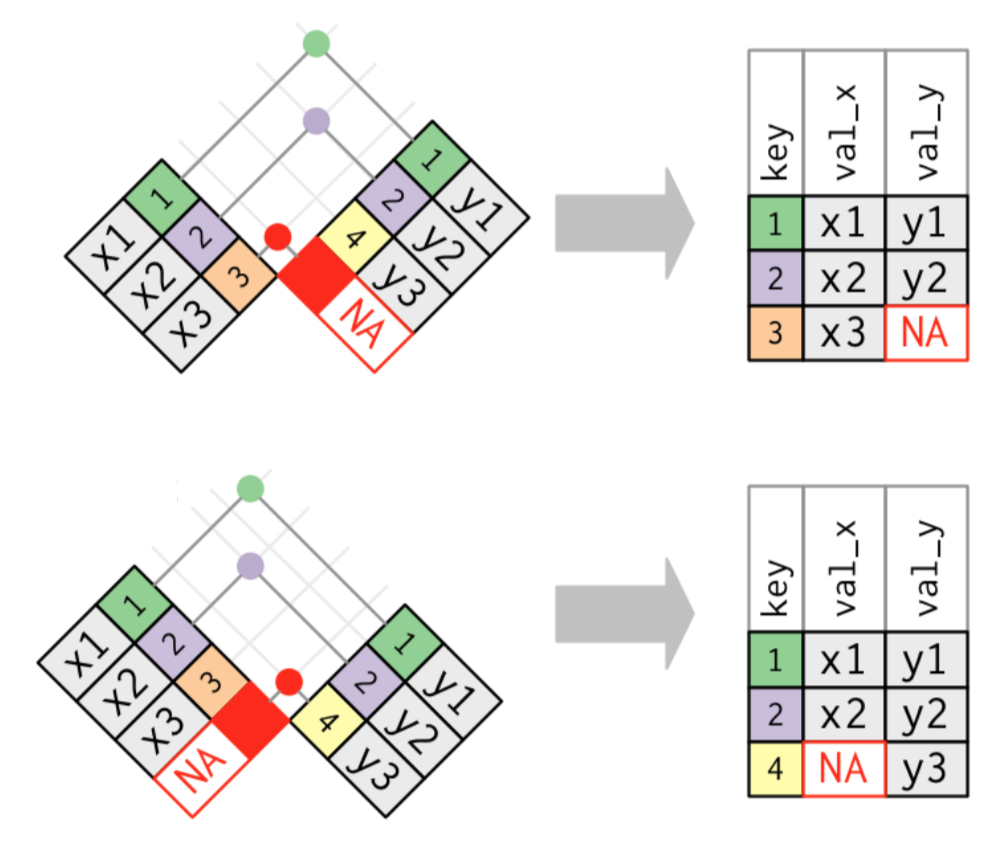

--- background-image: url(key_diagram.jpg) background-position: 95% 90% background-size: 250px # Left and Right Joins ### Left ```r left_join(show, demo, by = "show") ``` ### Right ```r right_join(show, demo, by = "show") ``` --- background-image: url(key_diagram.jpg) background-position: 95% 90% background-size: 250px # Full Joins ```r full_join(show, demo, by = "show") ```
--- background-image: url(key_diagram.jpg) background-position: 95% 90% background-size: 300px # Join Health and Demographics .huge[ Notable aspects of these sets: ] .large[.large[ - Health is in long form (two time points) - Demographics and health have multiple overlapping primary keys (`nam` and `show`) ]] --- # Join Health and Demographics ```r full_join(health, demo, by = c("nam", "show")) ## or inner_, left_,, or right_ ```
--- # What if we .dcoral[forgot] one of the .nicegreen[keys]? ```r full_join(health, demo, by = "nam") ``` .large[.large[ This provides 80 rows (not the correct 76) ]] -- <br> ```r full_join(health, demo, by = "show") ``` .large[.large[ This provides 1,480 rows (not the correct 76) ]] -- <br> .center[.large[.large[.dcoral[ Why might this happen? ]]]] --- background-image: url(fig_bad_join.jpg) background-position: 50% 85% background-size: 1000px # .nicegreen[Unique] Identifiers .huge[If we don't have unique identifiers the data can blow up] --- # Common Errors... .huge[ 1. Understand your data (both primary and foreign keys, missing values) 2. Trying to join when should be "binding" ] --- # What About Missing? .huge[ Notes: 1. If .dcoral[key] (primary or foreign) is missing, those cannot be joined with the correct data (it will keep those in `full_join()`) 2. Other missing values are carried into the joined set ] --- # .dcoral[Bind], Instead of Join .huge[ What if we have two versions of the demographics table - One that contains info on "Parks and Rec" - The other on "The Office" .bluer[Do we have keys we can join on?] ] -- .huge[ Nope... ] --- background-image: url(binding_diagram.jpg) background-position: 50% 90% background-size: 600px # .dcoral[Bind], Instead of Join ```r rbind(office_health, parks_health) ``` --- # Awesome Resource .huge[ [R For Data Science by Garrett Grolemund and Hadley Wickham](http://r4ds.had.co.nz/relational-data.html) ] --- # Now Can Join Like a Cool Kid <div style="width:100%;height:0;padding-bottom:75%;position:relative;"><iframe src="https://giphy.com/embed/3o6nUP7jsZCYziNxlK" width="60%" height="60%" style="position:absolute" frameBorder="0" class="giphy-embed" allowFullScreen></iframe></div><p><a href="https://giphy.com/gifs/heyarnold-nicksplat-3o6nUP7jsZCYziNxlK">via GIPHY</a></p>
